- Lubrication of components
- Easy access graphics interface, text and eventual failures by “touch screen panel” on swivelling support
- Robust frame mainly built in stainless steel and designed for easy cleaning
- Ergonomic design which offers the maximum visibility of working process and easy operator access
- Simple and fast format changeover is possible also in automatic mode
- Product grouping station with brake spacing system to separate the packages
- Main guiding chain with servo motors to optimize the movements
- Positioning chain with automatic adjustment
- Large cardboard magazine with reduced pressure discharging system
- Side and top flaps gluing and closing by means of mechanical device or pneumatic cylinders
- Product feeding by distribution unit
- Product grouping and separating
- Layer formation
- Blank feeding

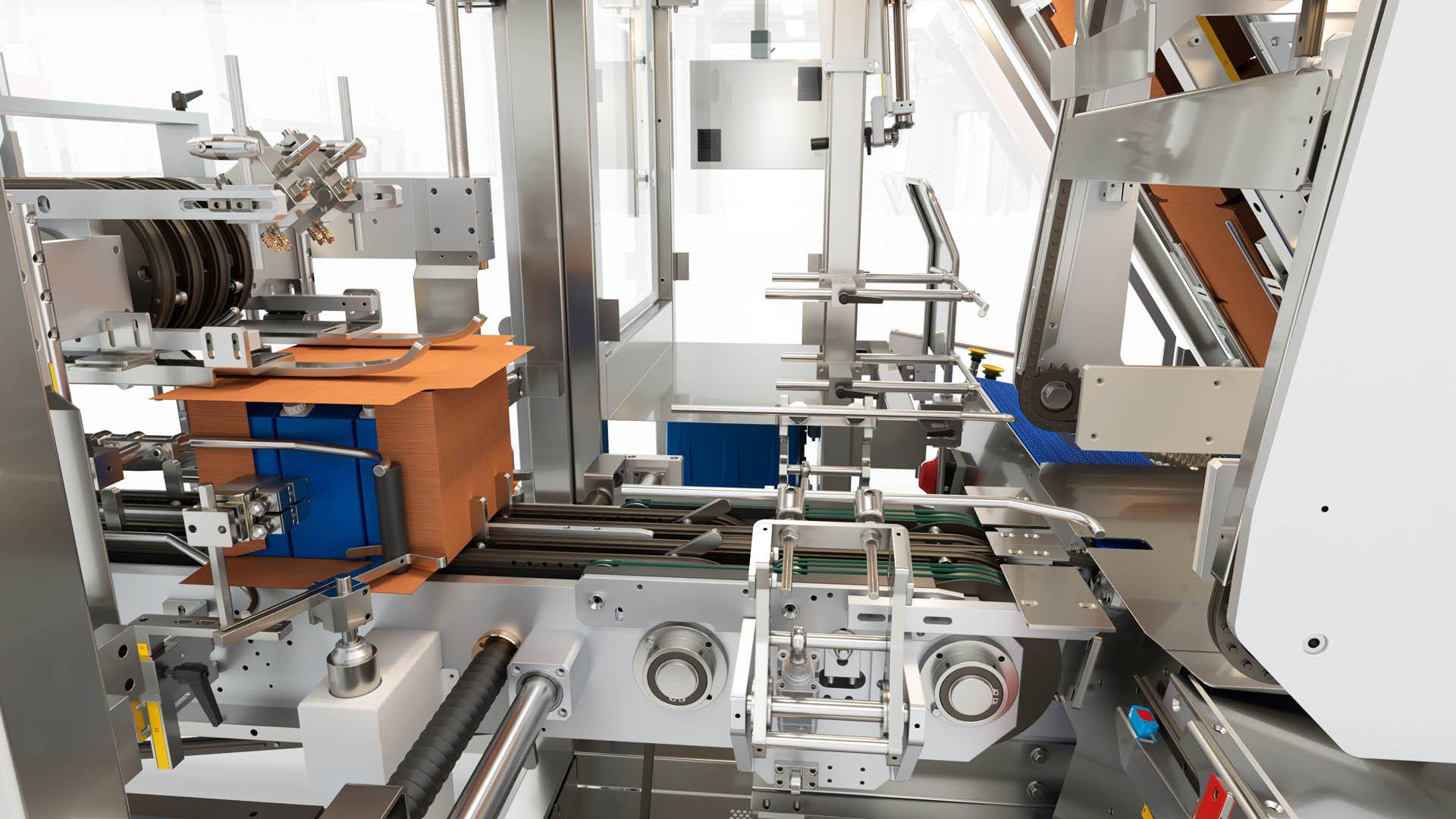

- Layer/product feeding with blank side wall folding
- Wrapping
- Side flaps gluing and closing

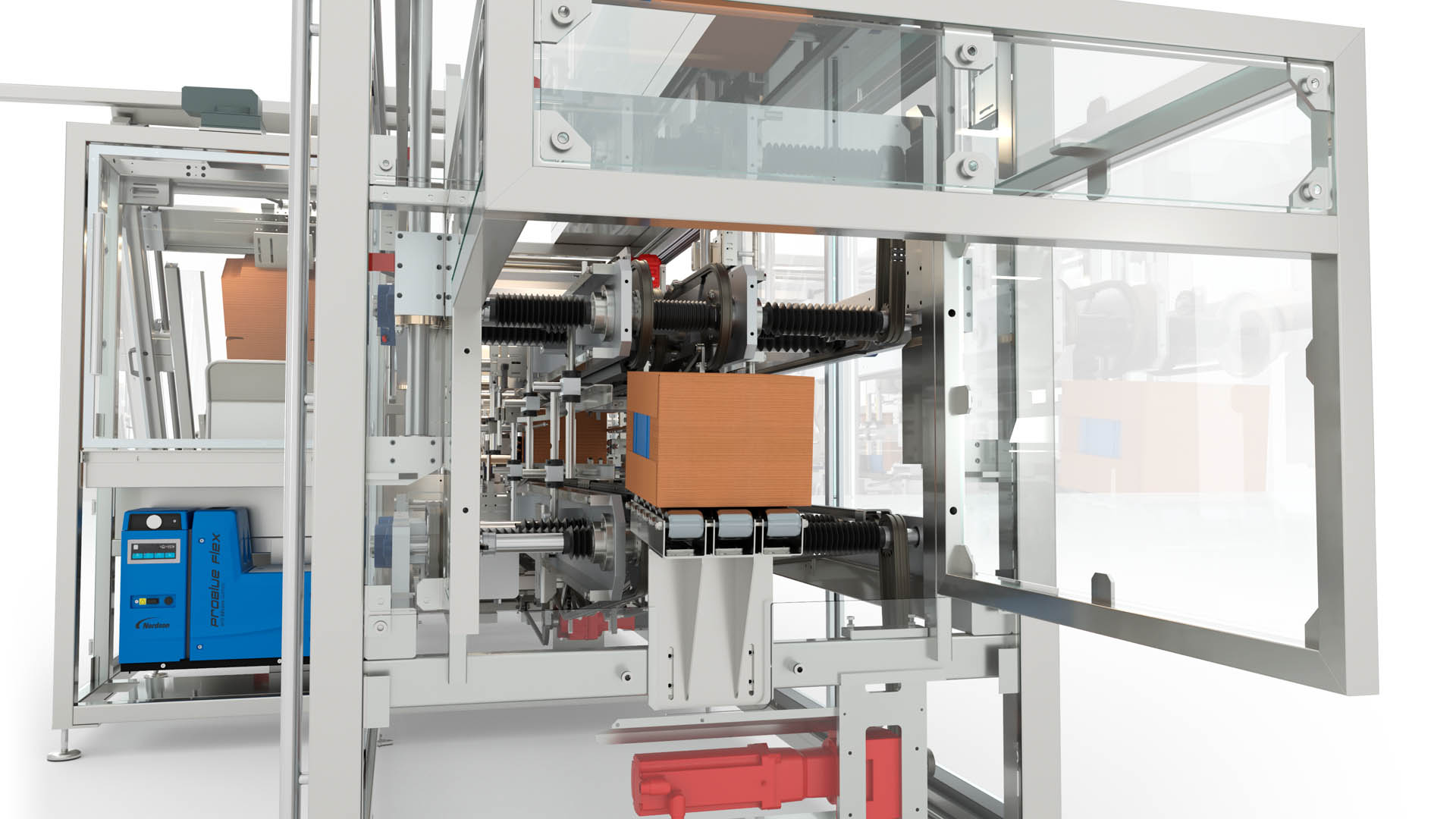

- Case outfeed
| TRAY DIMENSIONS | BLANK DIMENSION | ||
|---|---|---|---|
| Lenght (L) | 152 mm – 480 mm | X | 232 mm – 620 mm |
| Width (B) | 115 mm – 320 mm | Y | 255 mm – 280 mm |
| Height (H) | 70 mm – 280 mm | Front Flap | 40 mm – 70 mm |
| Product Height | 70mm – 280 mm | ||
| WRAP-AROUND CARTONS DIMENSIONS | BLANK DIMENSION | ||
|---|---|---|---|
| Lenght (L) | 152 mm – 480 mm | X | 232 mm – 620 mm |
| Width (B) | 115 mm – 320 mm | Y | 255 mm -280 mm |
| Height (H) | 110 mm – 280 mm | Front Flap | 40 mm – 70 mm |
| Product Height | 105 mm – 275 mm | Lid Flap | 40 mm – 70 mm |
| Secondary packaging | Low and height trays as standard , optional wrap-around cartons and braces tray |
| Average capacity of blank magazine | N. 600 Blanks |
| Electrical Consumption | Power : 20 Kw –3 x 400 V, 50 Hz + neutral + protected hearth Medium: 5 Kw | Maximum: 10 Kw |
| Air supply | 6 bar minimum, clean, dry |
| Air consumption | Medium: 400 nl/min -> 24 mc/h | Maximum: 600 nl/min -> 36 m³/h |
IMW-336
Intermittent devider
This kind of device is used when the boxing machine is applied in lines with standard packages and speeds.
IMW-336
Continuous devider
This kind of device is used when the boxing machine is applied in lines with delicate packages and high working speeds.
